Optical Cond - Collimated Holes, Inc.

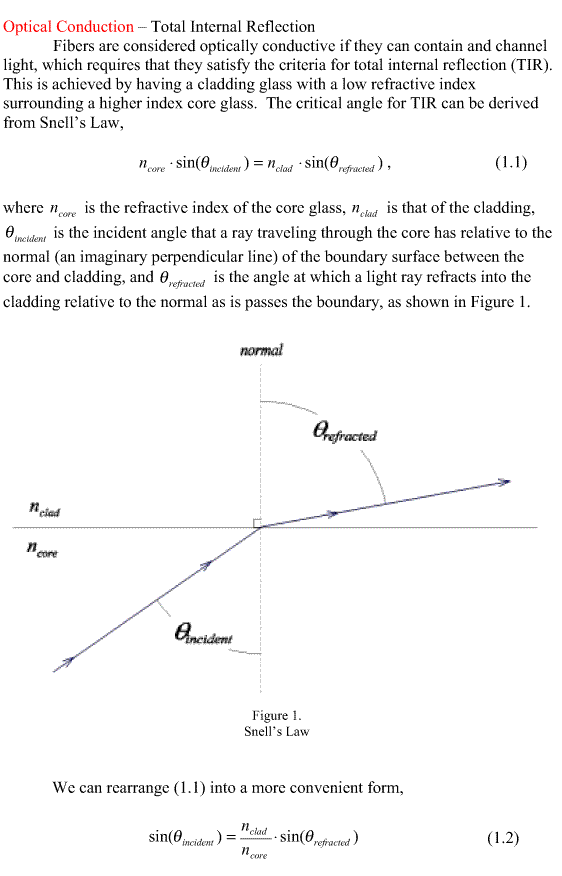

$Snell’s Law: Refraction and incident angle at core-cladding boundary$

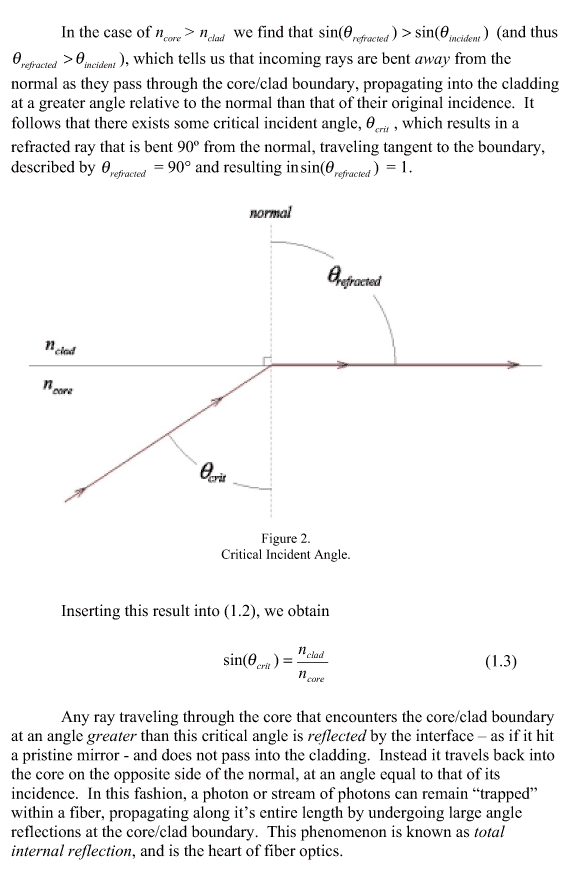

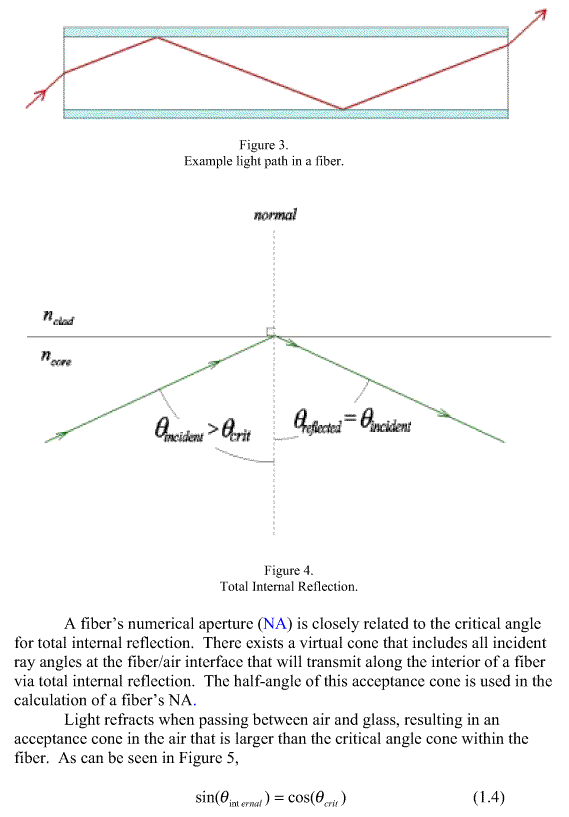

Critical incident angle leading to total internal reflection TIR reflection path through an optical fiber

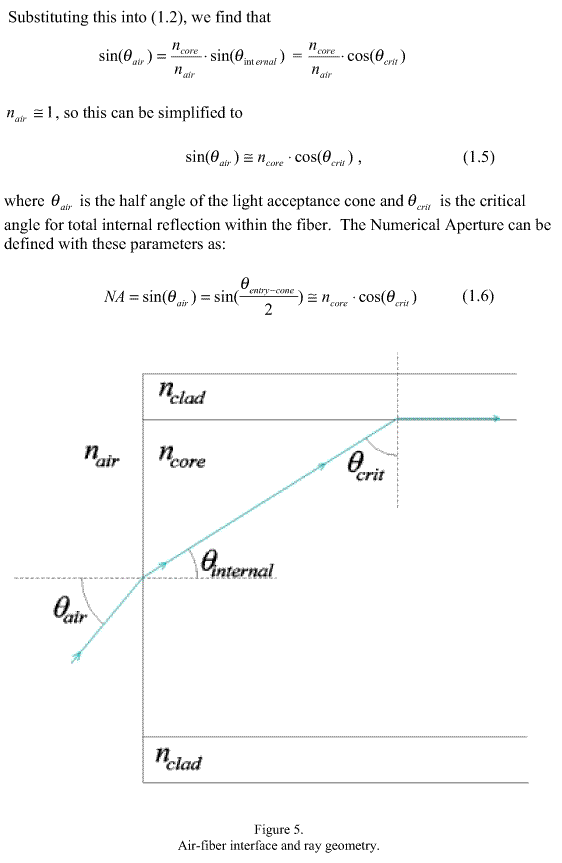

Ray diagram showing air-glass interface and critical angle for TIR

Optical Cond – Custom Fiber Optic Design and Manufacturing
